FEATURES:
- Nominal pressure: PN63;
- Operating temperature: -25°C to +180°C;
- Thread type: GAS;
- Sizes: DN8-DN100;
- ISO5211 flange for rotary actuator mounting;
- Compliant with PED Directive 2014/68/EU;

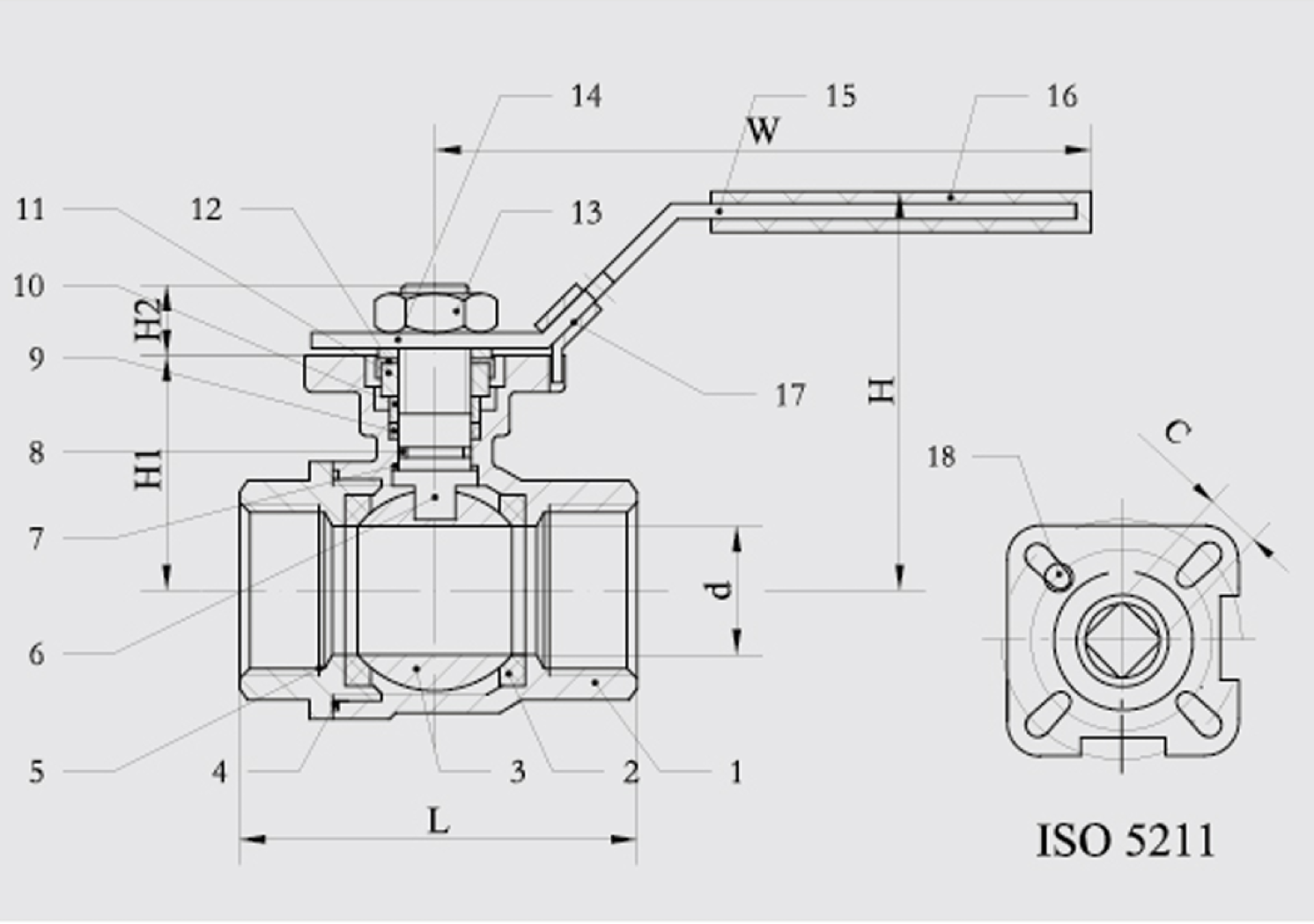

| DN | Ød | L | H | W | C | ISO5211 | N.M | Kg |
| 8 | 11,5 | 56 | 65 | 115 | 9 | F03 | 5 | 0,37 |
| 10 | 12,5 | 56 | 65 | 115 | 9 | F03 | 5 | 0,35 |
| 15 | 15 | 57 | 65 | 145 | 9 | F03/F04 | 5 | 0,37 |
| 20 | 20 | 64 | 70 | 145 | 9 | F03/F04 | 8 | 0,49 |
| 25 | 25 | 77 | 75 | 160 | 11 | F04/F05 | 10 | 0,74 |
| 32 | 32 | 90 | 85 | 160 | 11 | F04/F05 | 14 | 1,18 |
| 40 | 38 | 105 | 95 | 185 | 14 | F05/F07 | 18 | 1,94 |
| 50 | 50 | 125 | 105 | 185 | 14 | F05/F07 | 25 | 2,90 |
| 65 | 65 | 153 | 140 | 255 | 17 | F07/F10 | 48 | 5,77 |
| 80 | 76 | 172 | 145 | 255 | 17 | F07/F10 | 75 | 8,45 |
| 100 | 76 | 221 | 175 | 302 | 17 | F07/F10 | 110 | 15,6 |
