Angle seat Valves

Back to the products

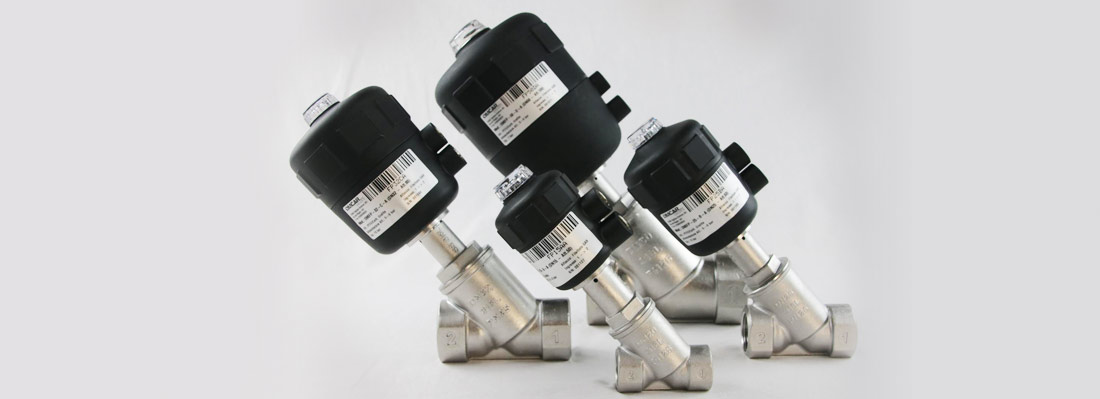

OMIFP

STAINLESS STEEL 316L BODY - (ON/OFF) TECHNOPOLYMER ACTUATOR PA06



Main Features:
• Angle free-flow seat with high flow rate coefficient
• NC (normally closed), NA (normally open), DE (double effect) functions
• High working differential pressures PN 16 PN 25 PN 40
• Resistance to corrosion, abrasion, wear and oxidation
• Low air consumption
• Linear technopolymer actuator (50, 63, 80 and 100 mm), 360° adjustable, with visual indicator
• Tilting shutter with PTFE/C755 seal (Teflon + Graphite 30%)
• PTFE/C755 and FKM double packing gland with compression spring
• Compatible with a wide range of accessories: Namur solenoid valves, magnetic/inductive/pneumatic/electromechanical sensors, stroke limiters, handwheel for manual opening
• In accordance with PED 97/23/CE - ATEX directive

DN KV DP (bar) PN Actuator Stroke
15 (1/2") 5.9 18 40 50 (A) 12 mm
15 (1/2")
5.9 20 40 63 (B)
12 mm
20 (3/4") 10 14 40 50 (A)
12 mm
20 (3/4") 10 14 40 63 (B)
12 mm
25 (1") 19.4 9 40 50 (A)
16 mm
25 (1") 19.4 12 40 63 (B) 16 mm
32 (1"1/4) 27.2 10 25 63 (B) 18 mm
32 (1"1/4) 27.2
16 25 80 (C)
18 mm
40 (1"1/2) 43 10 25 80 (C)
20 mm
40 (1"1/2) 43 20 25 100 (D)
20 mm
50 (2") 58 7 25 80 (C)
22 mm
50 (2") 58 12 25 100 (D)
22 mm

CONNECTIONS: FF GAS ISO 228G, Flanged EN/ISO PN16 (B1), PN25 (B2), PN40 (B3), Socket weld (C), Butt weld (D), Clamp (E)

OMBFP

NICKEL-PLATED BRASS BODY – (ON/OFF) TECHNOPOLYMER ACTUATOR PA06



Main Features:
• Applications: steam, liquids and chemical substances compatible with nickel-plated brass, oil, gas, operating temperatures -10° +110°
• Angle free-flow seat with high flow rate coefficient
• NC (normally closed), NA (normally open), DE (double effect) functions
• High working differential pressures PN 16 PN 25
• Resistance to corrosion, abrasion, wear and oxidation
• Low air consumption
• Technopolymer linear actuator (50, 63, 80 and 100 mm), 360° adjustable, with visual indicator
• Tilting shutter with EPTM HT seal, Viton
• O-ring, EPDM, Viton seals
• Compatible with a wide range of accessories: Namur solenoid valves, magnetic/inductive/pneumatic/electromechanical sensors, stroke limiters, handwheel for manual opening
• In accordance with PED 97/23/CE - ATEX directive

DN KV DP (bar) PN Actuator Stroke
10 (3/8") 2.6 25 25 50 (A) 10 mm
15 (1/2") 4.9 18 25 50 (A) 12 mm
15 (1/2")
4.9 20 25 63 (B)
12 mm
20 (3/4") 9.2 14 25 50 (A)
12 mm
20 (3/4") 9.2 16 25 63 (B)
12 mm
25 (1") 18.3 9 25 50 (A)
16 mm
25 (1") 18.3 12 25
63 (B) 16 mm
32 (1"1/4) 26.4 10 25 63 (B) 18 mm
32 (1"1/4) 26.4
16 25 80 (C)
18 mm
40 (1"1/2) 41 10 25 80 (C)
20 mm
40 (1"1/2) 41 20 25 100 (D)
20 mm
50 (2") 57 7 25 80 (C)
22 mm
50 (2") 57 12 25 100 (D)
22 mm
65 (2"1/2) 97 6 25 100 (D) 25 mm
80 (3") 148 3 25 100 (D) 25

CONNECTIONS: FF GAS ISO 228G

OMIF

STAINLESS STEEL 316L BODY - (ON-OFF) STAINLESS STEEL 304 ACTUATOR



Main Features:
• Applications: steam, aggressive liquids, chemicals, vacuum, oil, gas, operating temperatures -10 ° +190°
• Angle free-flow seat with high flow rate coefficient
• NC (normally closed), NA (normally open) functions
• High working differential pressures PN 16 PN 25 PN 40
• Resistance to corrosion, abrasion, wear and oxidation
• Low air consumption
• 304 stainless steel actuator (50, 70 and 100 mm), 360° adjustable, with visual indicator
• Tilting shutter with PTFE/C755 seal (Teflon + Graphite 30%)
• PTFE/C755 and FKM double packing gland with compression spring
• Spring safety system (pre-compressed spring)
• Compatible with a wide range of accessories: Namur solenoid valves, magnetic/inductive/pneumatic/electromechanical sensors, stroke limiters, handwheel for manual opening
• In accordance with PED 97/23/CE - ATEX directive

DN KV DP (bar) PN Actuator Stroke
15 (1/2") 5.9 18 40 50 (A) 12 mm
15 (1/2")
5.9 35 40
70 (B)
12 mm
20 (3/4") 10 14 40
50 (A)
12 mm
20 (3/4") 10
25 40
70 (B)
12 mm
25 (1") 19.4 9 40
50 (A)
16 mm
25 (1") 19.4 20 40
70 (B) 16 mm
32 (1"1/4) 27.2 13 25 70 (B) 18 mm
32 (1"1/4) 27.2
22 25 100 (C)
18 mm
40 (1"1/2) 43 8 25 70 (B)
20 mm
40 (1"1/2) 43 20 25 100 (C)
20 mm
50 (2") 58 5.5 25 70 (B)
22 mm
50 (2") 58 12 25 100 (C)
22 mm

CONNECTIONS: FF GAS ISO 228G, Flanged EN/ISO PN16 (B1), PN25 (B2), PN40 (B3), Socket weld (C), Butt weld (D), Clamp (E)
